CNC MACHINING CENTER

VMC1370 CNC Machining Center
VMC1370 CNC Machining Center

PRODUCT DETAILS

VMC1370 CNC Machining Center

SPECIFICATIONS

ITM
Unit
VMC1270
VMC1370
VMC850




Travel
X axis
MM
1200
1300
850
Y axis
MM
700
700
550
Z axis
MM
700
700
550
Spindle nose to table
MM
150-800
150-850
120-670
Spindle nose to column
MM
780
780
550


Feed
Max.x rapid feed
M/Min
20
24
24
Max.y rapid feed
M/Min
20
24
24
Max.z rapid feed
M/Min
16
12
15
Cutting feed
MM/Min
1-10000
1-10000
1-10000
Torque(x y z)
N.m
23/23/23
23/23/23
15/15/15

Table

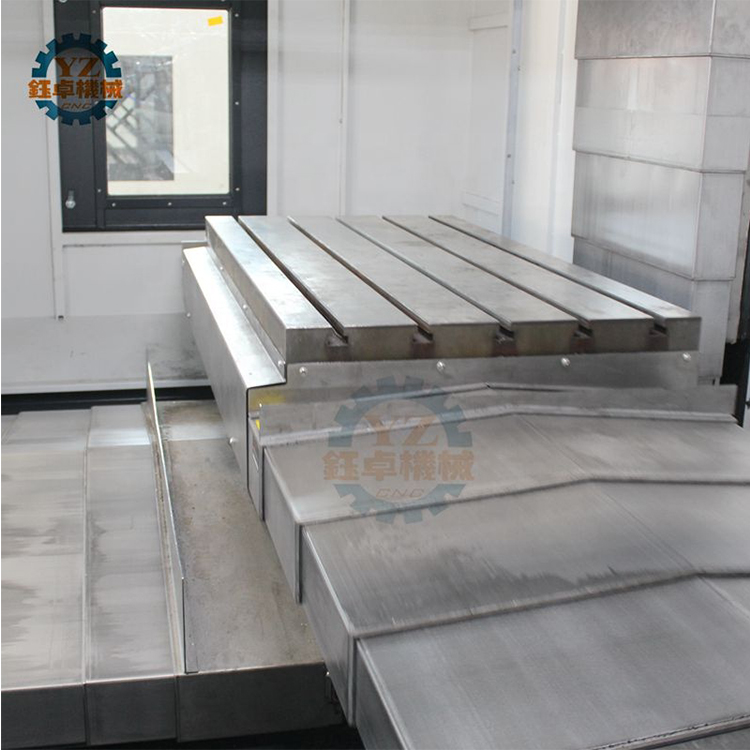

Table size
MM
1400*700
1500*700
1000*500
Max.load
KG
700
1000
500
T slot
MM
5-18-120
5-18-125
5-18-90
Type
Belt (Taiwan)
Speed
RPM
50-8000
50-6000
50-8000
Spindle bore
MM
150
155
150
Spindle taper
BT40
BT50
BT40
Pull stud
MAS403-BT-1
Main motor
KW
11/15
15/18.5
7.5/11
Accuracy
Positioning Accuracy
MM
±0.015/300mm
±0.015/300mm
±0.015/300mm
Repeatibility
MM
0.0075
0.0075
0.0075
Machine
Size( L W H)
MM
3200*2800*2600
3400*3100*3000
2650*2300*2450
Weight
KG
7800KG
8200KG
5200KG

STANDARD CONFIGURATION

  1. KND2000 cnc system.
  2. Taiwan BT40-150-8000 spindle.
  3. Taiwan 20T Funnel Type Tool Changer.
  4. Taiwan Hiwin Ball Screw and Linear Guideway.
  5. Auto Lubrication System.
  6. Cooling System.
  7. Work Lamp.
  8. Full Enclosure Machine Guard.

OPTIONAL CONFIGURATION

  1. GSK KND Siemens Fanuc Mitusbishi GUNT.
  2. Funnel type tool changer.
  3. Automatic chip conveyor
  4. 4th axis and 5th axis.
  5. Spindle oil coolant, Center to water.
  6. Renishaw probe for workpiece and tool.

YZ CNC MACHINERY ADVANTAGES

  • Over 18 years experience in the CNC machine industry.

  • Engineers are available to service machinery overseas.

  • Warranty period is one year, life-long after sale service.

  • Our experienced technicians can offer you answer to your technical questions, and in many cases, solve your problem effectively over the phone.
